finish

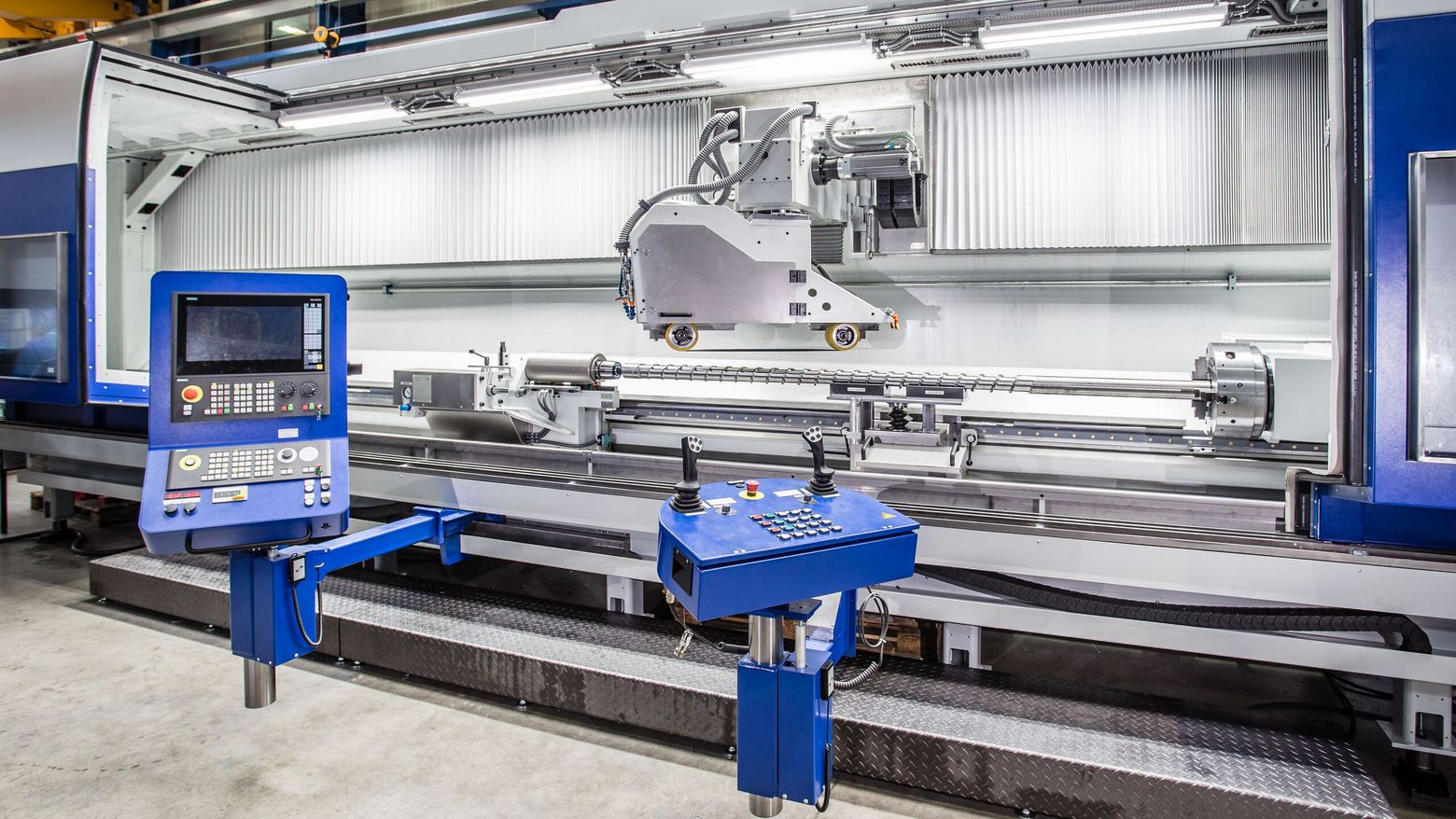

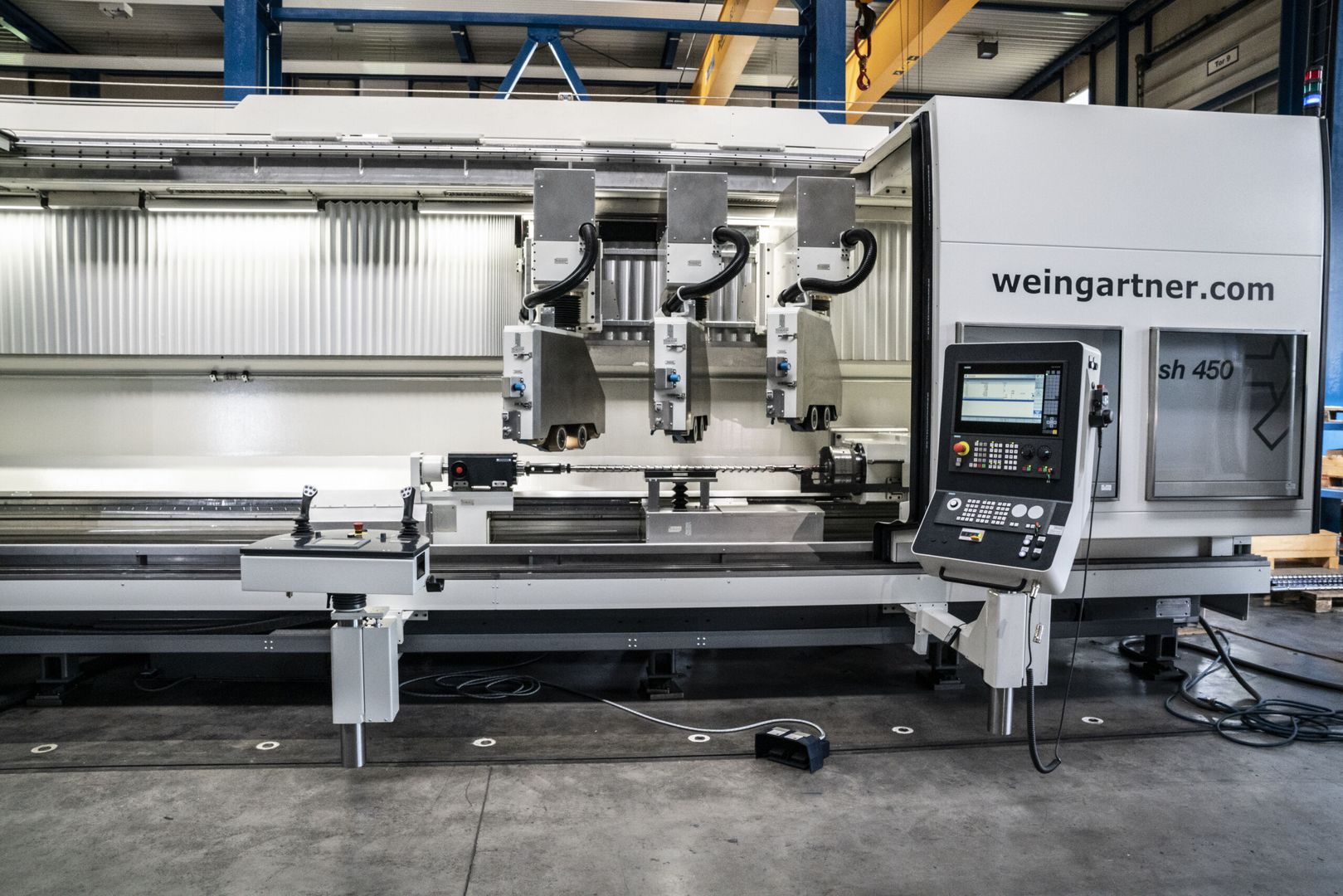

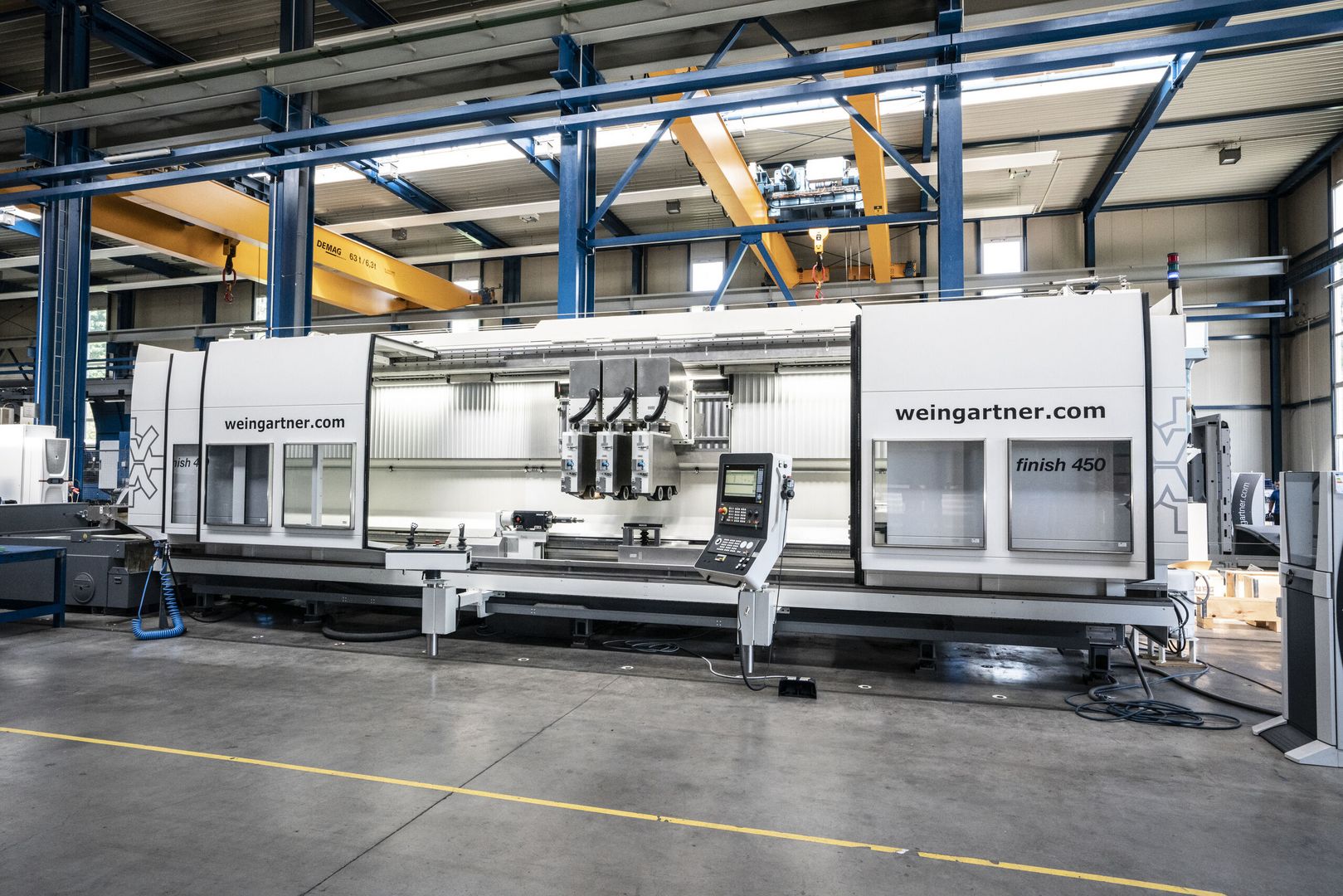

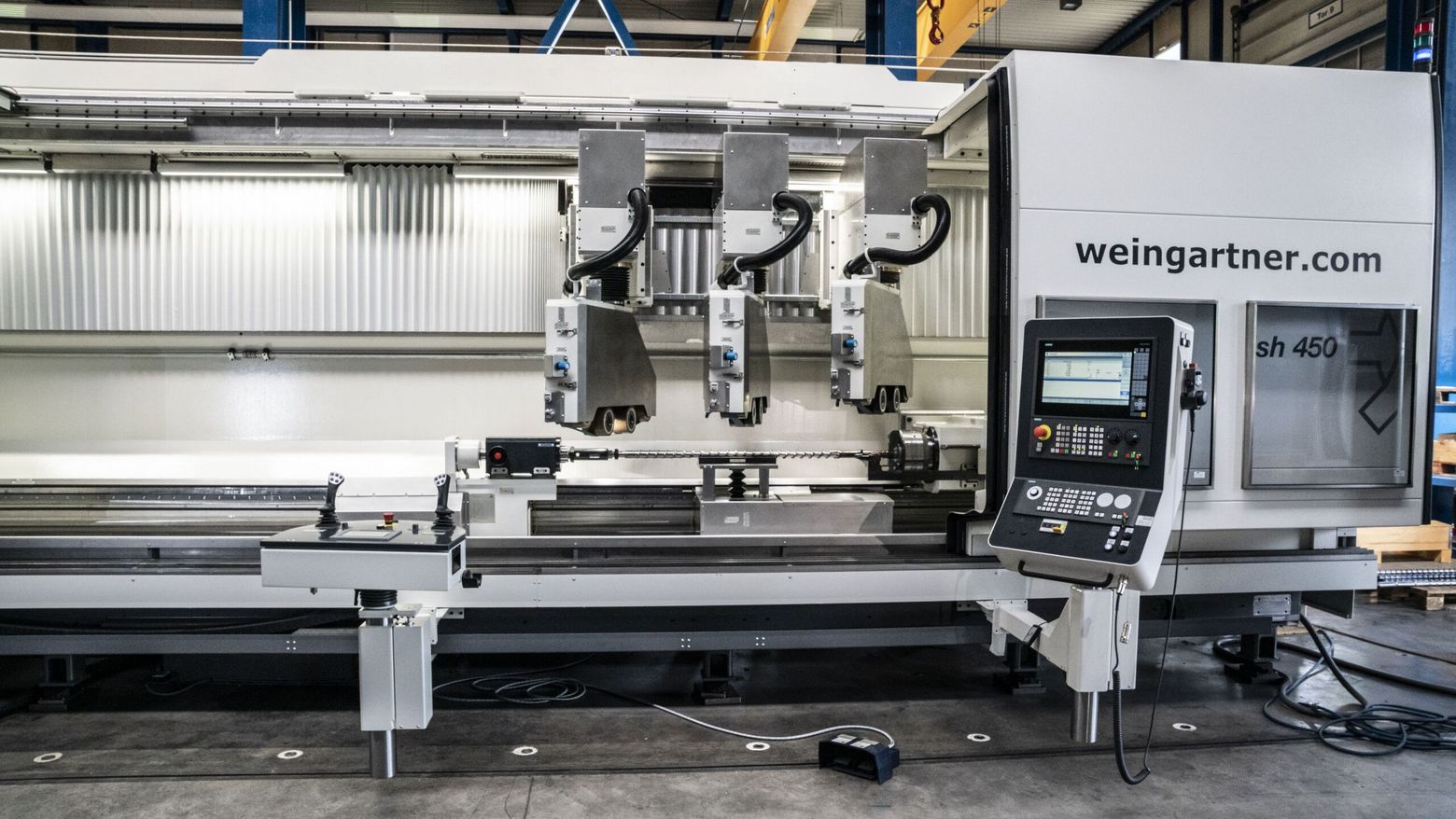

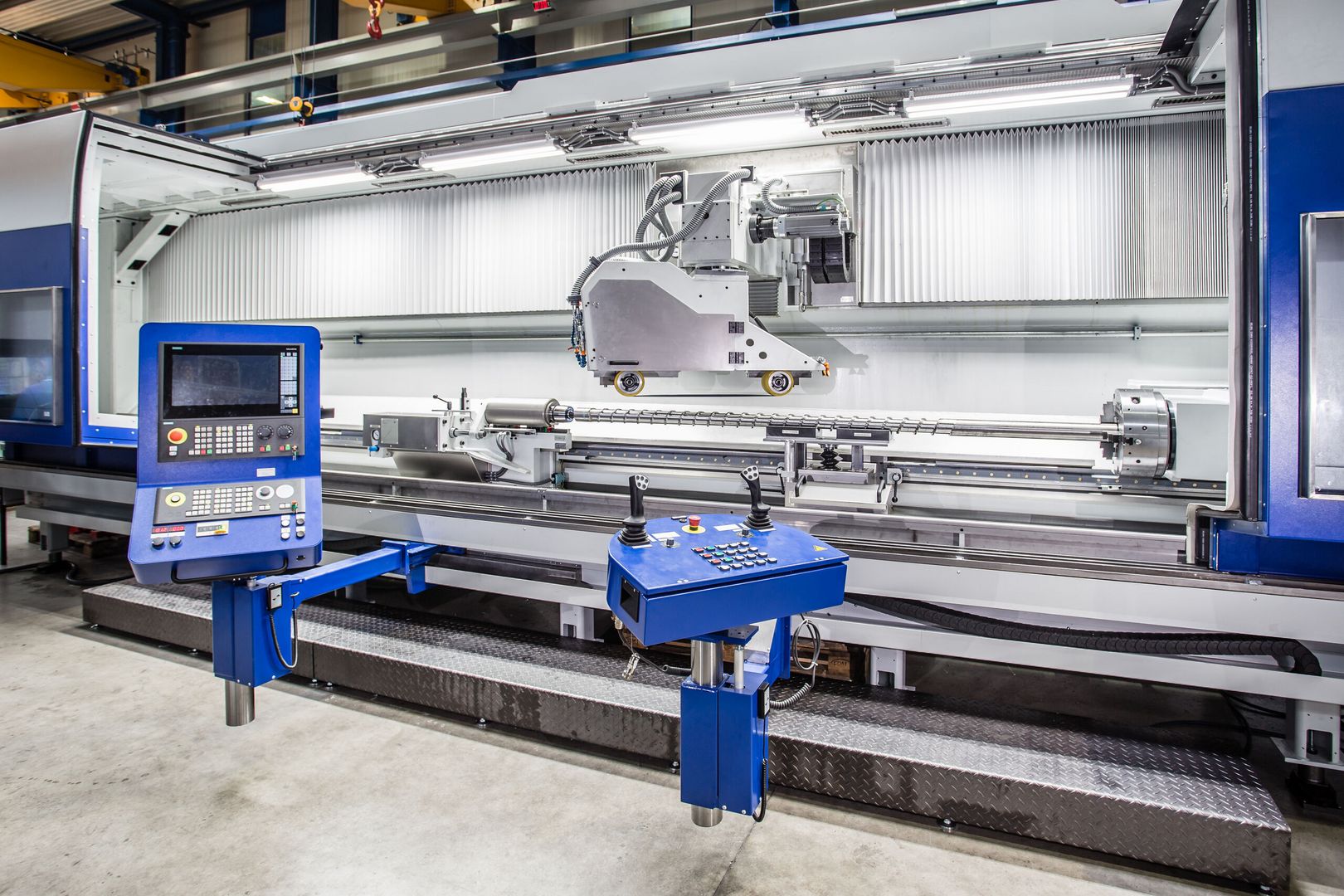

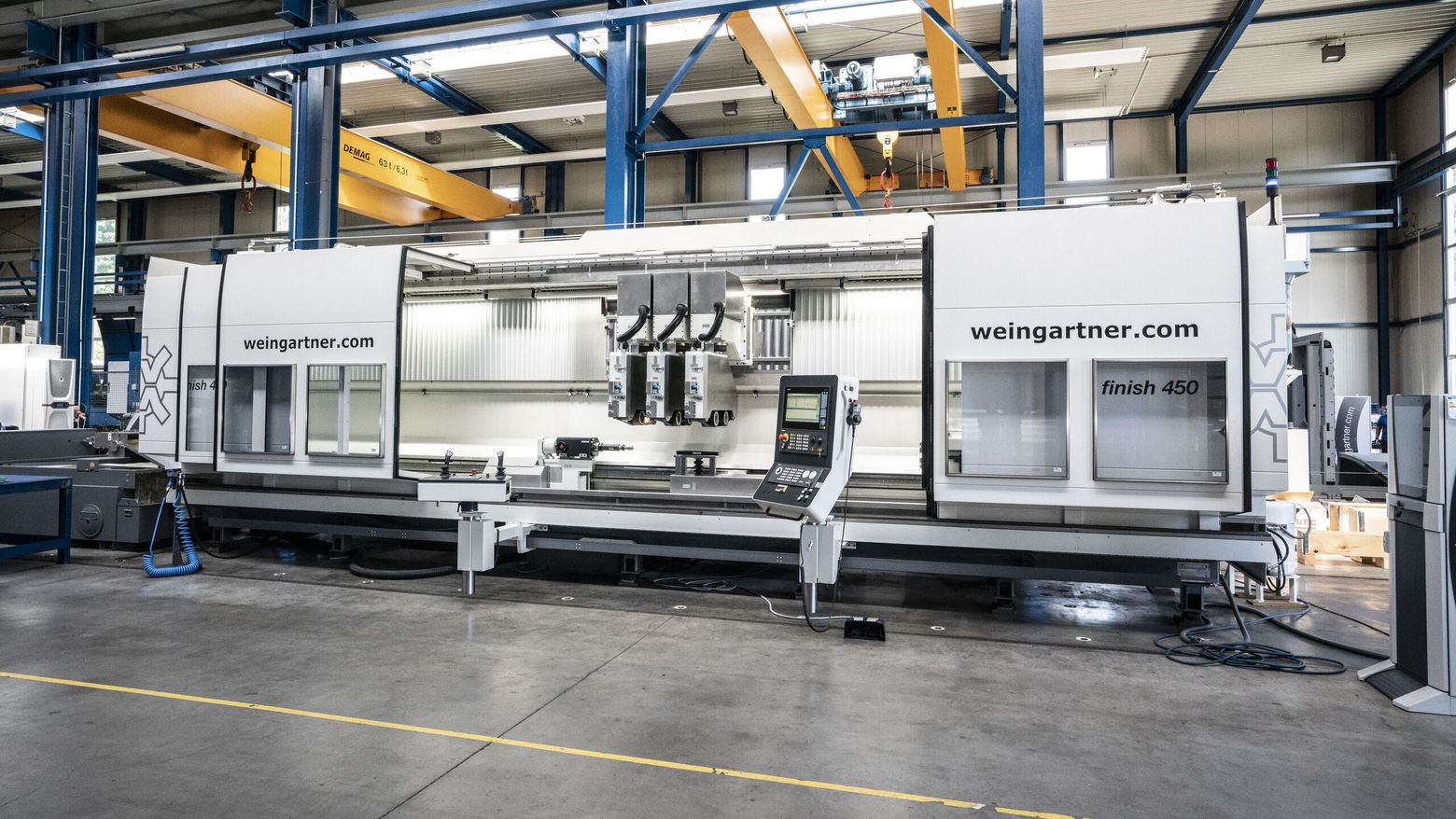

The finish machine tool from Weingärtner offers a comprehensive solution for the controlled grinding, polishing, and measurement processes required to achieve the perfect finish on parts machined with Weingärtner machines. With its advanced features, this machine covers the entire spectrum of finishing operations, including polishing, grinding, and precise measurement.

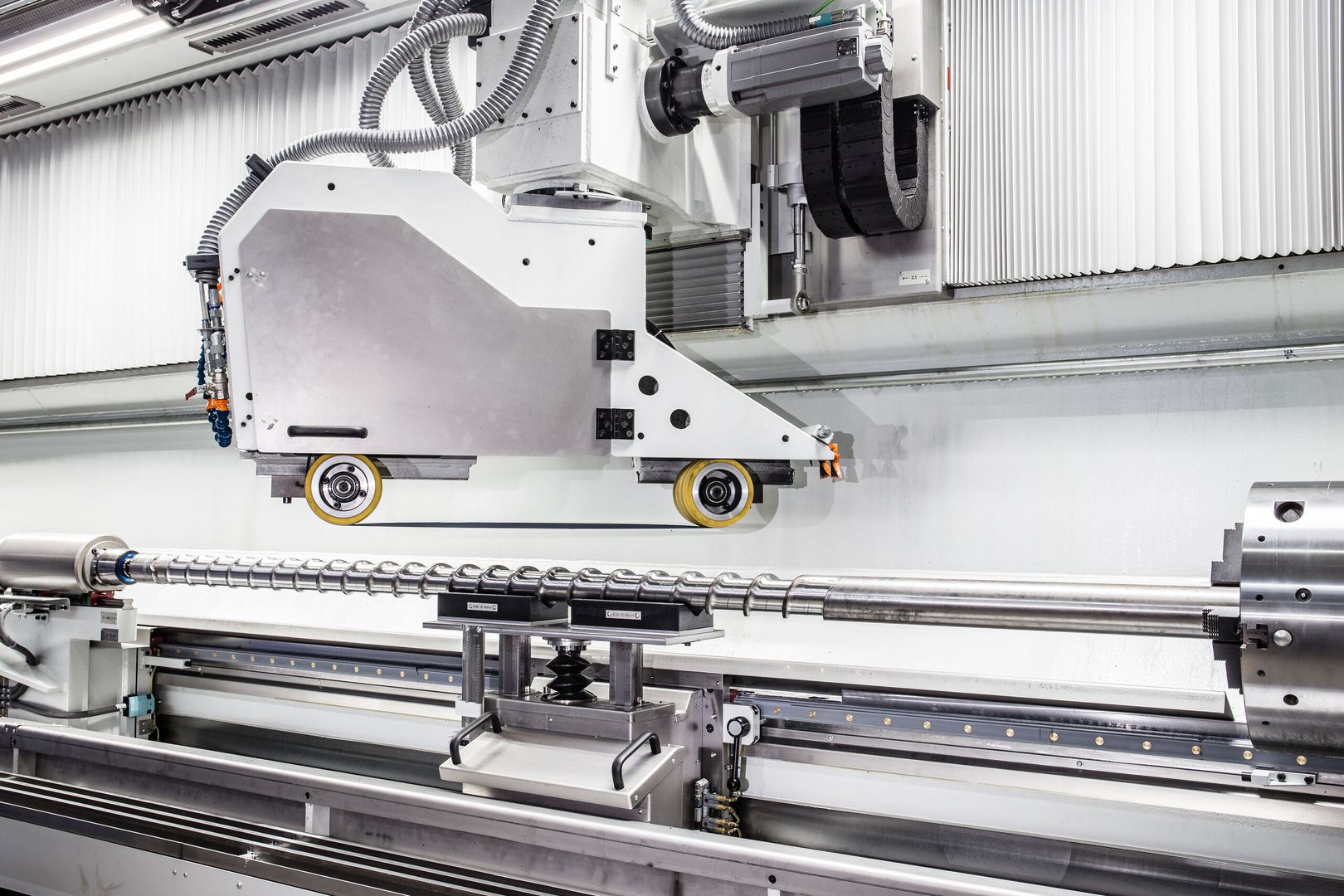

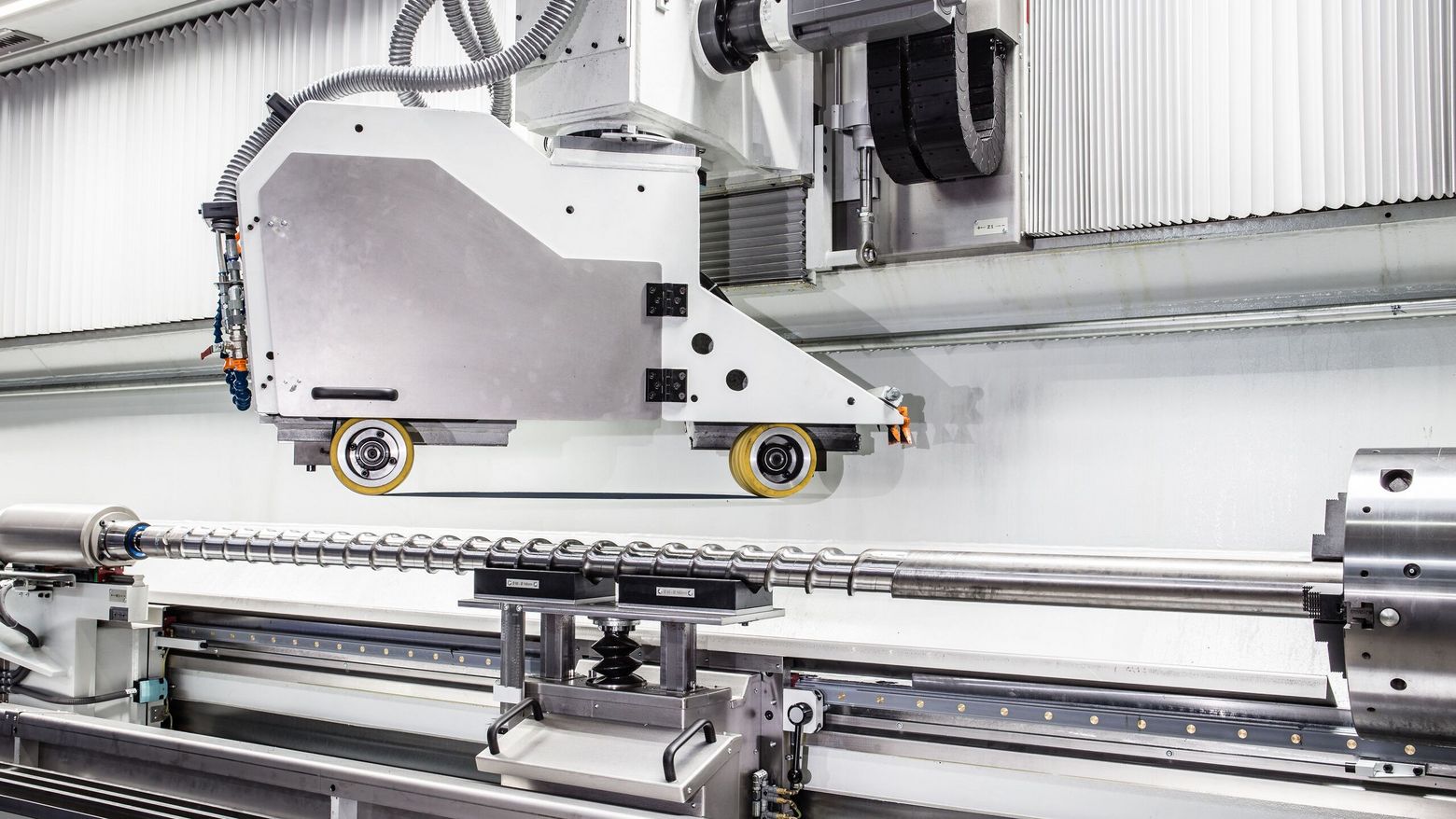

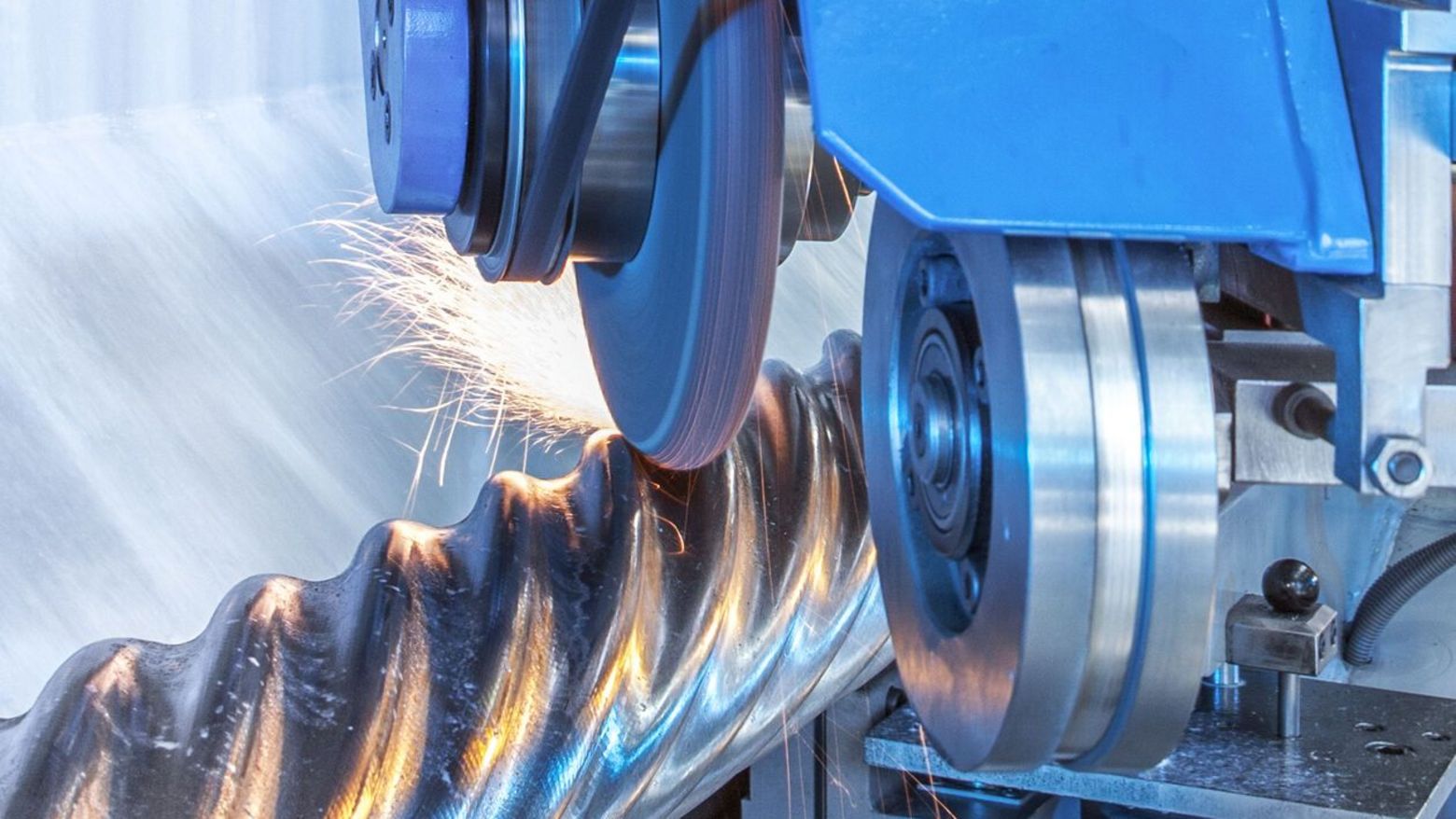

The machine is available in a single or double slide design, featuring a multifunctional unit for polishing with various options such as belts, contact wheels, or flap wheels. Additionally, optional units for grinding and measurement, as well as a profiling unit for the efficient production of single and multi-start rotors and stator cores for eccentric screw pumps/motors (Moineau) and plasticizing screws, are available.

Key Features of the Basic Machine Configuration:

• Welded base design with four hardened linear guides, support blocks, splash guard, and guideway covers.
• Headstock with a hollow spindle and adjustable passage (C axis).
• 3-jaw chuck for secure workpiece gripping.
• Longitudinal slide with rack and pinion drive system for precise movement along the Z axis.
• Face slide with a precision ball screw and weight compensation for smooth and accurate movement along the X axis.
• Tailstock (W axis) with pneumatically operated quill, offering flexibility according to technical requirements.
• Fully enclosed machine with automatic safety doors and protective glazing (B3/C3 - DIN EN 12415) for operator safety.
• Integrated flushing system for maintaining a clean working area.
• Pneumatic system with filtration and automatic water separation for efficient operation.
• Optional hydraulic equipment, including a power unit with a cooler, valves, and piping, can be added as needed.
• Electrical equipment includes a control system with digital drives (AC servo/main drive) for precise control and operation.
• Movable operating panel that is rotatable and height adjustable for convenient access and control.
• Documentation provided to ensure proper setup, operation, and maintenance.

Experience the advanced capabilities of the finish machine from Weingärtner and achieve outstanding results in grinding, polishing, and measurement processes. With our commitment to quality and innovation, we deliver cutting-edge solutions for your finishing needs.
